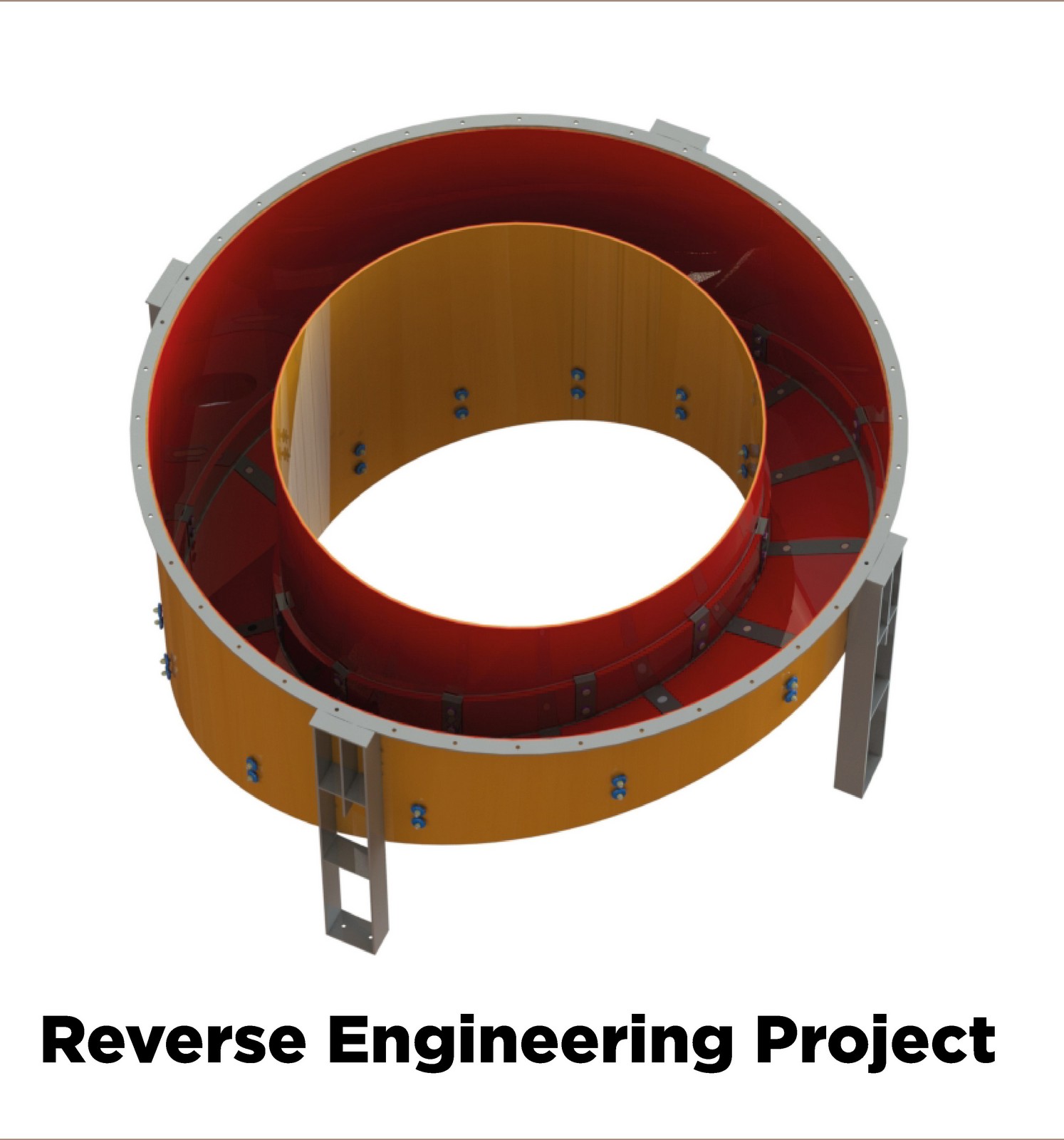

Scanning of the Launder was completed in 2 hours, scans registration were completed on site to ensure all required data was collected. Physical measurements were also taken to be used as reference points with the scan data. 3D Models of the Launder and the wear liners were created from the scan data, the assembly model was then compared to the scan data for confirmation. Detail drawings and liner layouts were then created from the confirmed models.
OBJECTIVE • Scan Launder to create 3D Model of asset including wear liners. • Create liner detail and layout drawings. • Identification of wear path. TIME FRAME • Scans completed in 2 hours, Post processing completed in 12 hours. • 3D Models and Detail Drawings completed in 40 hours. DELIVERABLES • 3D Model of Launder and Wear Liners • 2D Assembly and Liner Detail Drawings
As there were no existing liner layout drawings, we were able to create a full set of liner detail drawings including liner layouts. The 3D Models created were as built models and these are able to be used for future wear management services.

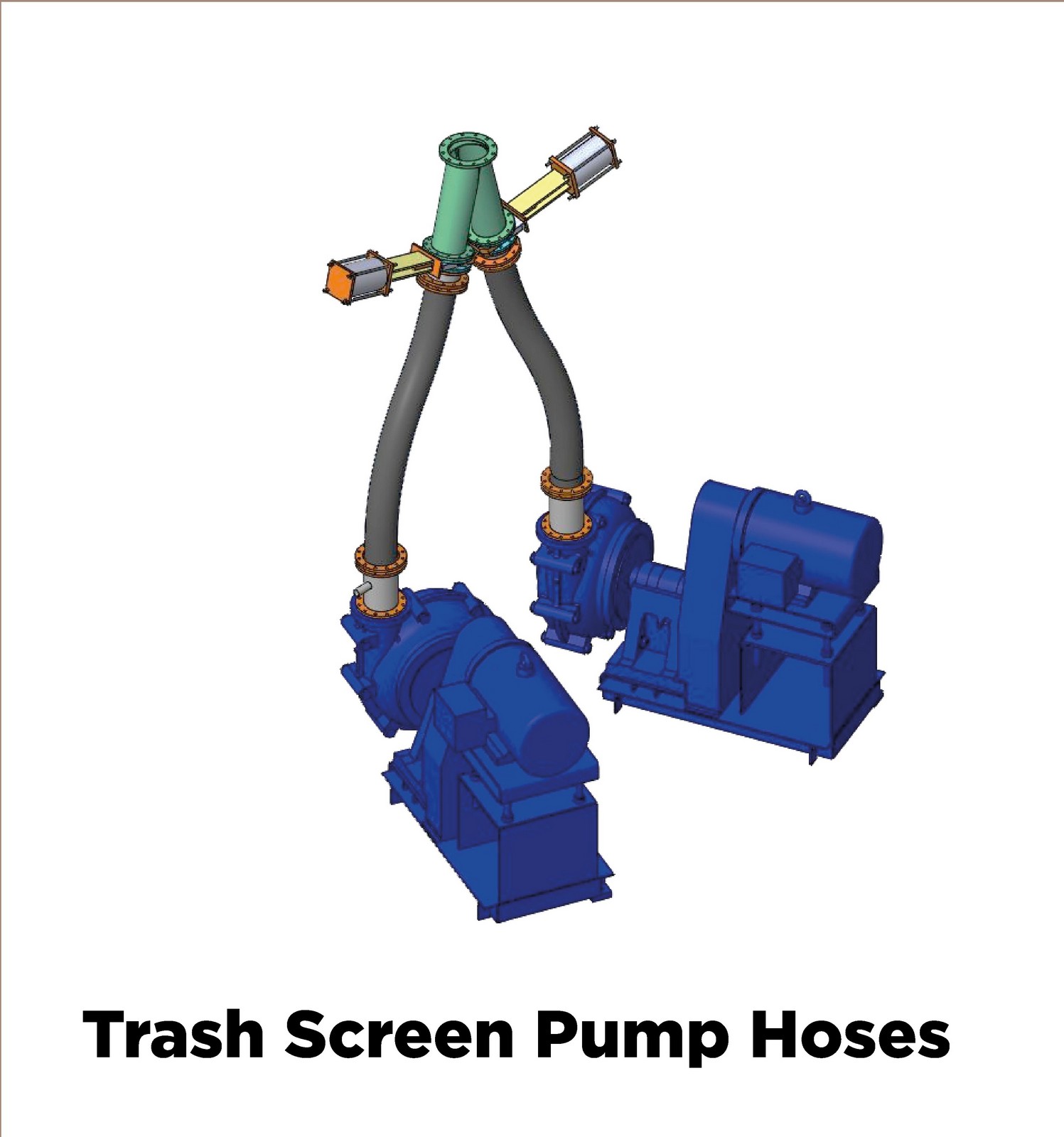

Scanning of the Trash Screen pumps was completed in 2 hours, scans registration was completed on site to ensure all required data was collected. 3D As-built models of the existing pumps & hoses were created from the scan data. New pump hoses were designed and inserted into scan data of existing Trash Screen pumps for confirmation. Detail & manufacturing drawings were created.
OBJECTIVE • Design and detail new pump hoses to suit new pump installation. • Supply detail drawings for hoses manufacturer. • Supply confirmation of fit using point cloud data an 3D model. TIME FRAME • Scans completed in 2 hours, Post processing completed in 12 hours. • 3D Models and detail drawings completed in 20 hours. DELIVERABLES • Full Detail design / manufacturing drawings.
As new pumps were installed and there were no drawings existed for the hoses, the use of 3D laser scanning allowed us to obtain all necessary data to design a new hoses to fit exactly as desired. The high quality detail drawings and ability to deliver on time was well received.
